When it comes to heating a large swimming pool, most people’s first reaction is usually to think a bigger heat pump will solve the problem.
On paper, that sounds logical. But in real use, once the pool reaches a certain size, that approach starts to break down.
The issue is no longer just about heating power. It becomes more about whether the system can stay stable during long periods of continuous operation.
This is where cascade systems start to make practical sense.
Not as a more advanced option, but simply as a more realistic way to handle scale.
What Is a Cascade Pool Heat Pump System?
Cascade systems involve the combination of heat pumps controlled through one common control system. While each machine operates separately, it no longer functions as an independent apparatus in reality.
Rather, the controller chooses the number of machines to operate depending on demand. The concept is straightforward, but system coordination is critical.
In comparison to this approach, the function of heat pumps is much more difficult when one is dealing with just one pump.
This is acceptable in smaller pools; however, the longer the demand remains high, the less efficient the process is going to become.
As a result, it becomes increasingly difficult to maintain the system.
Why Large Pools Need Cascade Heating Systems
Single heat pumps are usually designed for steady or moderate workloads. In larger pools, they often end up running for much longer than they were really meant to.
Over time, this kind of continuous operation doesn’t usually cause failure, but it does make performance less stable.
At the same time, large pools naturally lose heat all the time. Even when the system is running, heat keeps escaping through the water surface and surrounding environment.
Heat loss is continuous in outdoor environments. And as a result, the heat pump starts functioning in conditions of continuous loads.
This results in gradual performance degradation, not due to malfunction, but because the system is operating beyond its intended capacity range. Then further scaling of the system makes sense.
How a Cascade Pool Heat Pump System Works
When the system starts, it doesn’t turn everything on at once.
Usually, one unit takes the first load and starts heating the water. Most of the time, that’s already enough in the early stage.
If it isn’t, the system just brings another unit in. Then another if needed. It’s not something that happens all at once.
Once more than one unit is running, the load naturally gets shared between them. Instead of one machine doing all the work, each unit takes part of it, so none of them is constantly pushed to full capacity.
As the water temperature gets closer to the target, things slow down again. Some units reduce output, some stop completely, and usually one stays running just to hold the temperature steady.

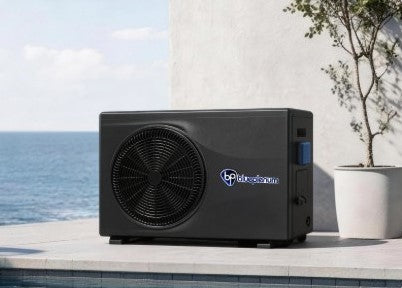

With systems that allow cascade control, equipment such as the BluePlenum with Flow Max 107 inverter pool heat pump makes this synchronization process much easier to organize. The system allows for up to 16 pieces of equipment within one setup, including one master unit and the remaining 15 slave units, which makes the whole system look like one piece of equipment from an end-user’s point of view.
The interface doesn’t differ at all. All you need to do is to set a desired temperature.
But internally, the system keeps adjusting, adding or removing units, balancing the load, and trying to stay in a comfortable range instead of running everything flat out.
Role of Inverter Technology in Cascade Systems
The coordination described above can only be achieved through inverters. This means that the heat pumps will have adjustable power levels instead of merely being turned on and off.
Otherwise, the system would be much too inflexible, toggling between units rather than balancing them. Such an approach does not work in practice with the type of coordination used.
It introduces sudden variations in power loads, which would make the system extremely unstable with more than one unit.
The practical application of such an approach would be quite challenging.
Benefits of Cascade Pool Heating Systems
The benefits don’t usually show up immediately. They become clearer after the system has been running for a while. Because not all units are running at full power all the time, energy use tends to stay more balanced during long heating cycles.
Temperature control also feels more stable, since adjustments are smaller and more continuous instead of large corrections. Another important point is reliability. If one unit stops working, the system doesn’t shut down.
The remaining units keep running, just with less capacity, which is especially important in larger or commercial setups.
Where Cascade Systems Are Typically Used
Cascade systems are usually found in places where pools are either large or used continuously. That includes large residential pools, hotels, resorts, and commercial swimming facilities.
In these environments, heating demand is constant rather than occasional. For smaller pools, a single heat pump is still simpler and usually enough.
Cascade System vs Single Heat Pump
A single heat pump is generally fine for smaller pools with predictable usage. Cascade systems become more relevant when the pool is large and the usage is continuous or heavy.
The main difference is not just capacity, but how the system handles workload over time. Instead of pushing everything onto one machine, the load is spread across several units.
Single systems are easier and cheaper at the beginning. Cascade systems make more sense when long-term stability or future expansion matters.
Final thought
Cascade systems do not exist to make pool heating any more difficult. On the contrary, that is the last thing that they are designed to do. Instead, by spreading out the load between many different pieces of equipment, it becomes possible to prevent continuous strain from being placed upon one unit alone.
